Home Page
Got a question? Join Us On Discord
Introduction
This wiki is not a replacement for wiki.techinc.nl but is a dedicated wiki for the machines and operator groups within the space.
The current machine operators group consists of:
- Beatskip
- Anonymized
- OXA
This wiki serves as an opt in community for machine Knowledge Transfer.
Navigation
- CNC Information
- 3D Printer Information
- Laser Cutter Information
- Workstation Information
- Techinc WIKI
Machine Overview
| Machine | Type | Status |
| CNC |
Working |
|
| Laser Cutter |
Tube Failure / Being Repaired |
|
| CR-30 | 3D Printer |
Working |
| Ender 5 Plus | 3D Printer |
Working |
| Ender 3 V2 | 3D Printer |
Working |
| Artillery Sidewinder X2 | 3D Printer |
Working / Testing |
| cad.ti | High End Workstation |
Working |

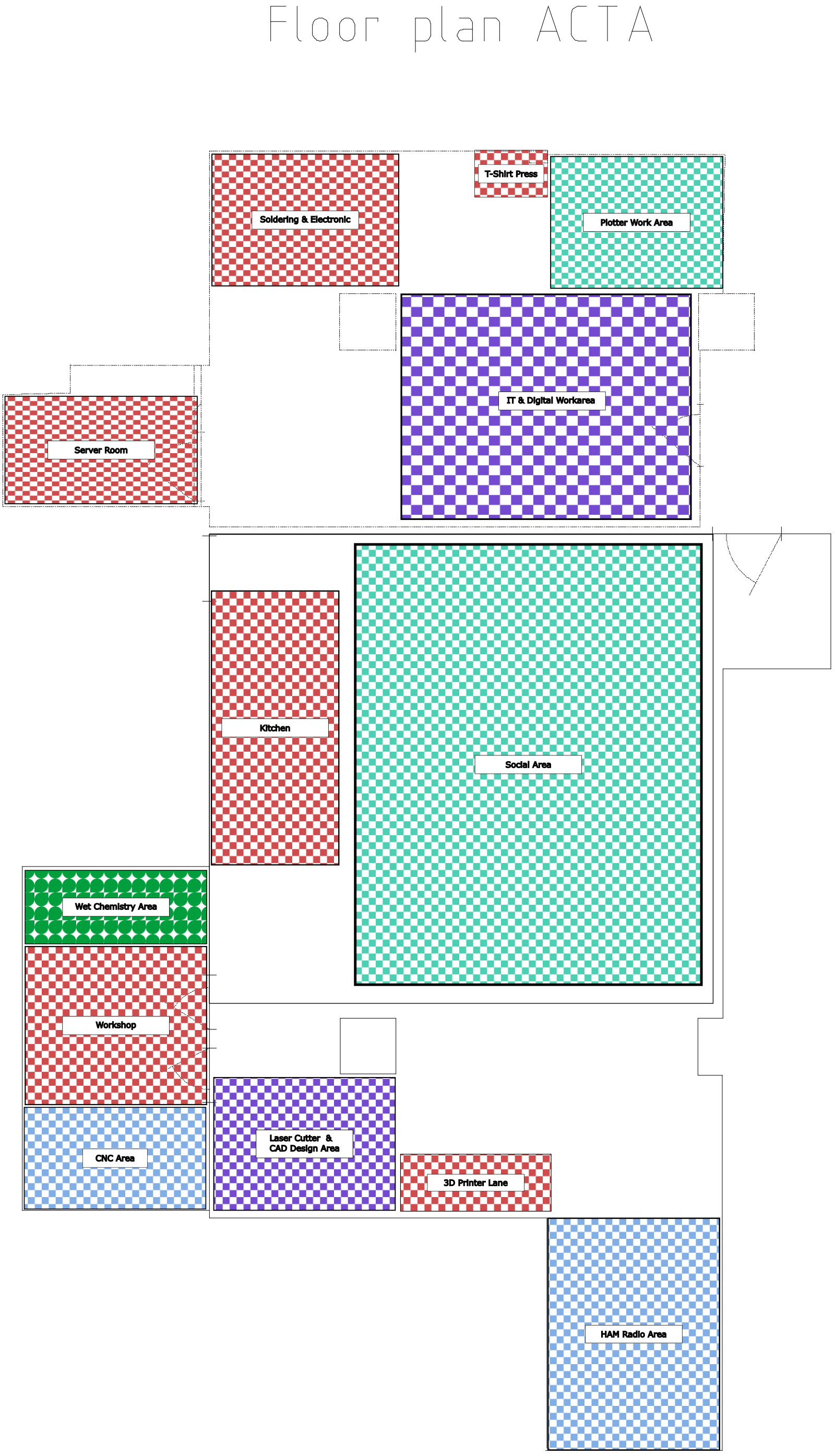

Machine Map
Contacting Us
Using the Techinc Unofficial Discord you can reach anyone from the Machine Wiki
Joining Us
Every Member is welcome to join and super users with professional knowledge are a blessing.
This group is focused on forming a community around the adoption of machines such as the CNC, Laser Cutter, 3D Printers and any other machine project, no limitations on who may join or use machines is imposed only safety!
PCB Manufacturing
Introduction & Overview
In order to make start to end hacking, prototyping and to get more people actively involved in the community we concluded that the ability to make relatively good PCB's in a short timeframe would be a valuable addition to the hackerspace. This page will quickly go over the different available options for making PCB's at Technologia Incognita.
The PCB fabrication processes will be tested, validated and standardized to make it accessible to as many members as possible. with the following target goals and possible stretch goals.
The PCB Fabrication processes should meet the following requirements:
- The process from design to prototype should be possible withing 120 minutes
- A standard 50mm x 70mm PCB prototype should not exceed a total cost of €2,50
- An averagely competent member should be able to make a PCB with minimal training (Max 1 evening of guidance)
- The cost of making a PCB has to be quantified, specified and be paid for per PCB in order to stock materials
- After refining the process, all tools and materials will get a fixed, standard spot in the machinery room [1]
- A member should have to be able to do the process on a weekday with normal clothing [2]
-
in order to keep the machine room orderly and minimize the amount of setup/cleanup time for the entire process.
-
a member should not have to fear the destruction of clothing or fear personal safety (within reason and excluding possible mishaps!)
Primary Flow: Sir Laze A Lot [WIP]
this page details the process of making PCB's using Sir Laze A Lot.
Requirements
- PCB design
- PCB design in gerber format
- Max 50mm x 70mm size
- Conforming DRC Rules [Altium DRC] | [KiCad DRC] | [Eagle DRC]
- Materials
- Single or Dual layer blank PCB [50mm x 70mm standardized format]
- Etch Resist Spray Paint [ Type TBD ]
- Sodium Persulphate [ Amount TBD ]
- Acetone
- Additional chemicals TBD
- Tools
- Laser cutter [Sir Laze A Lot]
- Etching Tank
- Paper towels
- Clean rag
- Safety equipment
- Eye protection
Stage 1: PCB Preparation
As a first step the bare PCB should be thoroughly cleaned with acetone from both sides. Any (finger)grease or dust will impact your end results!
After cleaning the PCB thoroughly you spray paint both sides of the PCB in 2 or 3 light coats of spray paint. (exact type TBD). Between each layer, make sure to let the paint dry in a well ventilated area.
Stage 2: Laser Engraving
Place the PCB inside the laser cutter and align the head to the top left corner of the PCB.
Stage 3: Preparation for etching
Clean the pcb lightly with a brush, soap and water (No Solvent!)
Stage 4: Etching
Etch the PCB
Stage 5: Cleanup and finish
Clean it up
Process Evaluation
This section gives additional information about the process and ongoing experiments.
Cost Overview
| Description | Quantity | Cost | Unit Cost |
| Blank PCB (5x7cm) | 1 pcs | €16,49 (40 pcs) | ~ €0,41 |
| Sodium Persulphate | TBD | ~€13,00 (1KG) | TBD |
| Spray Paint | TBD | TBD | TBD |
| Total Cost per unit | ~ € 99,99 | ||
Experiments

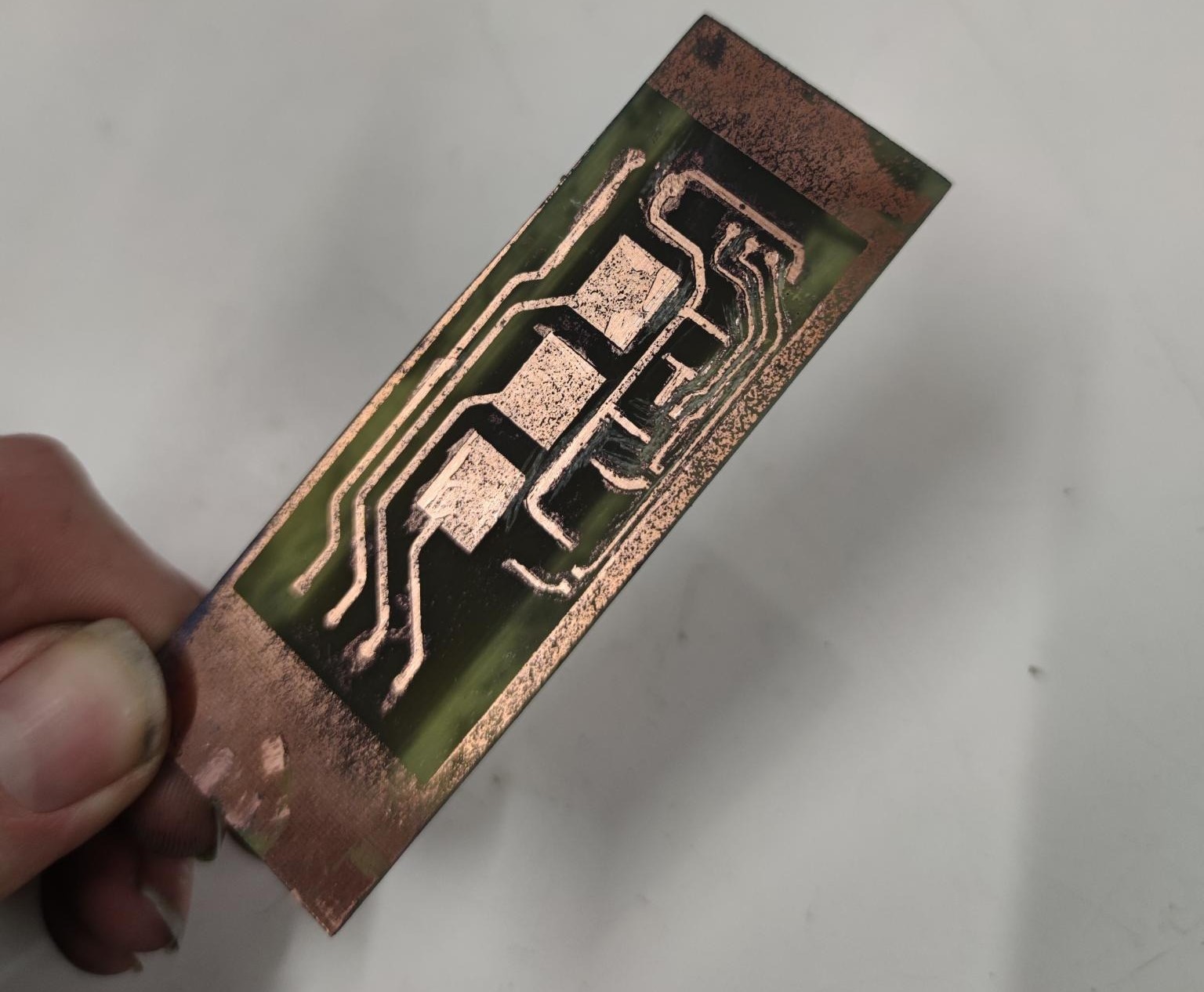

First PCB made with new laser cutter
TechInc Card Reader Project
Techinc Card Reader Project
Description
This project is used on machines and doors in the space and allows via means of build flags different types of readers to be deployed (online/offline, tinance2/independently managed)
Software
https://code.techinc.nl/techinc/tinance2-doorbot.git
Wiring Diagram
This diagram explains how the parts are wired:

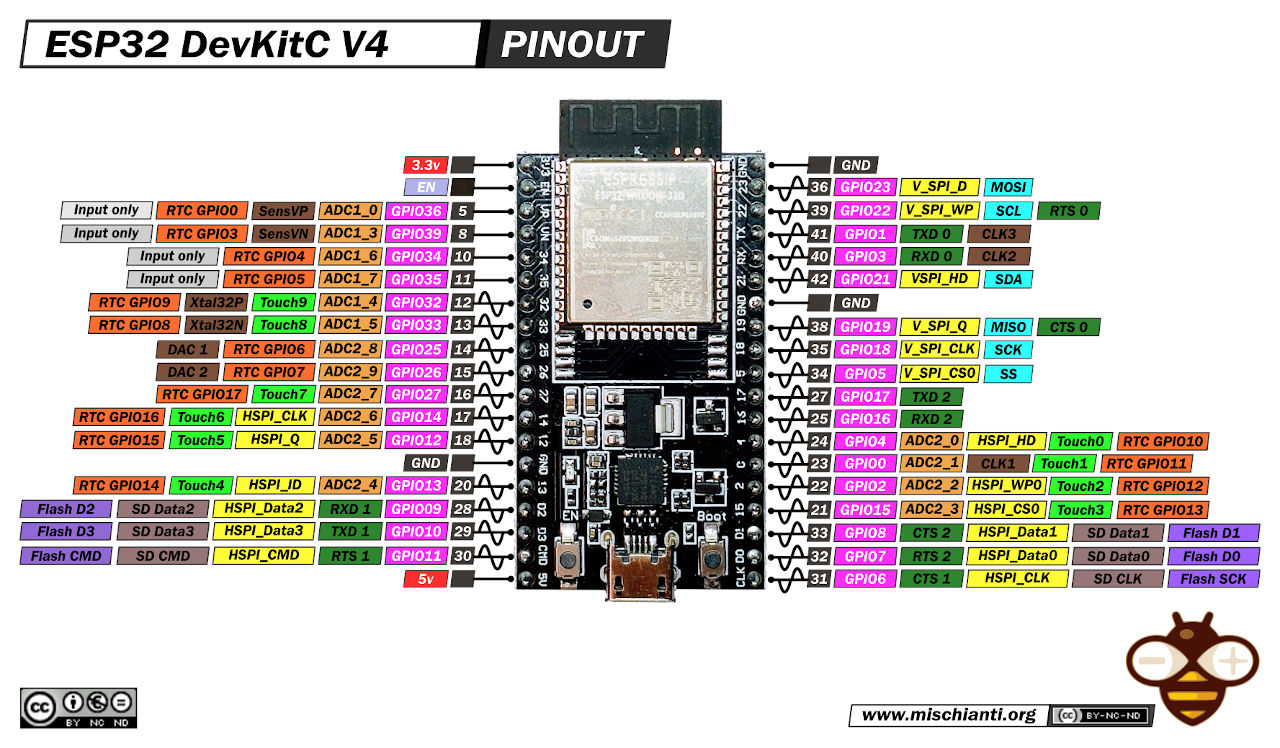

ESP32 Pinout

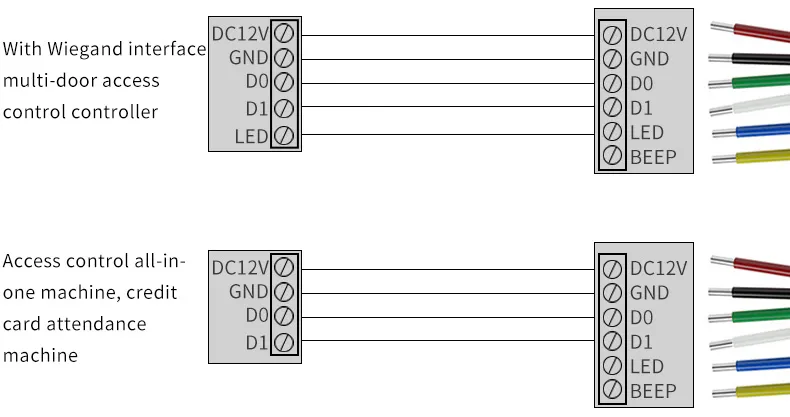

Card Reader pinout
Parts List
| Image | Description |
|
|

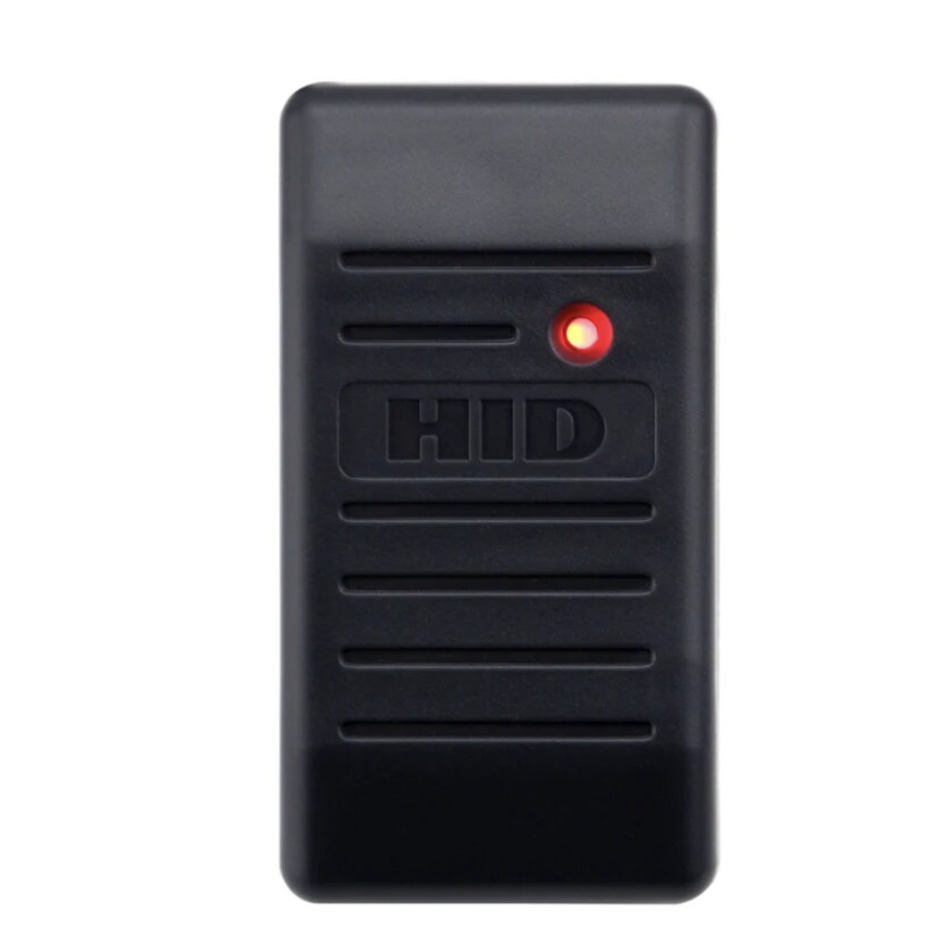

Card Reader for HID Protocol |
|
|

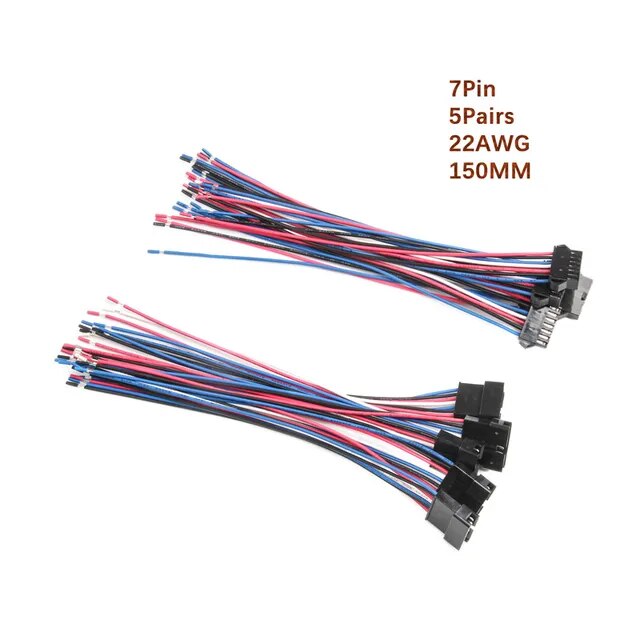

7 Pin Adapter for the Card Reader |
|
|
8 Pin Adapter (for Signals and relays) |
|
|

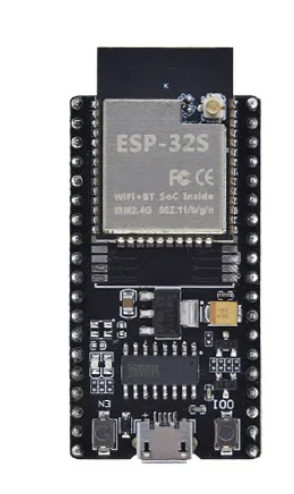

ESP with UFL connector for External Antenna |
|
|

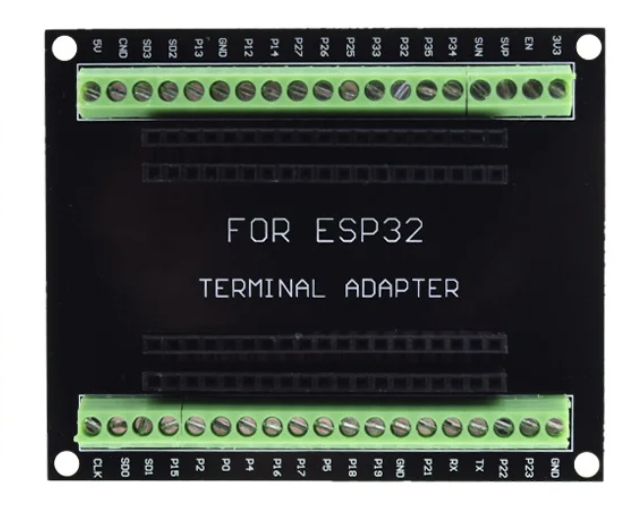

Terminal Adapter for Easy ESP Replacement |
|
|

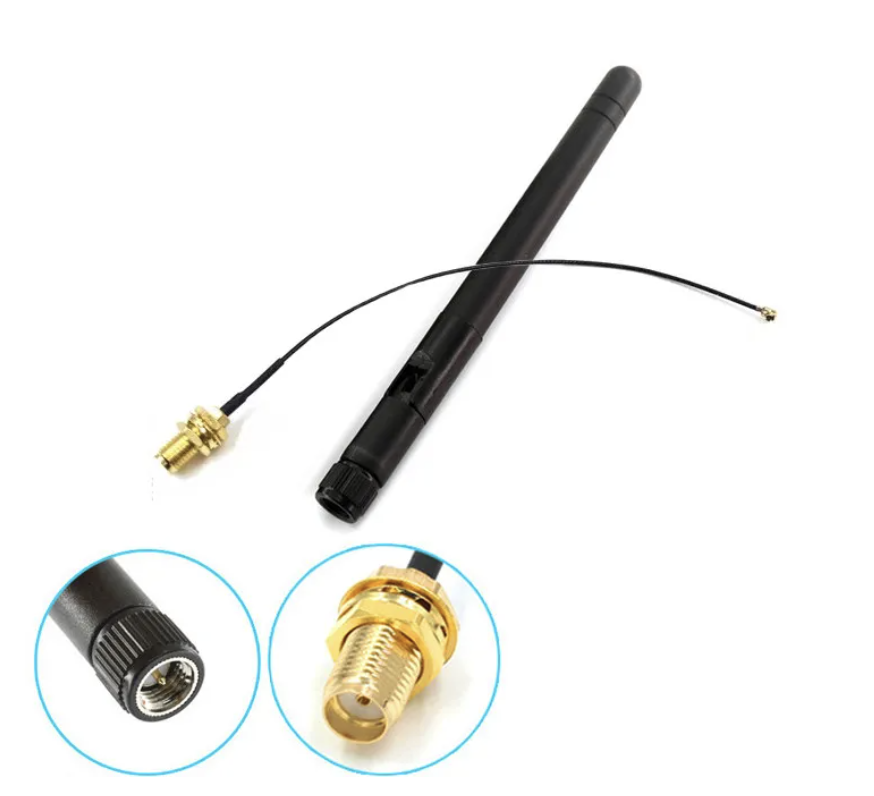

SMA Antenna External 2.4ghz |
|
|

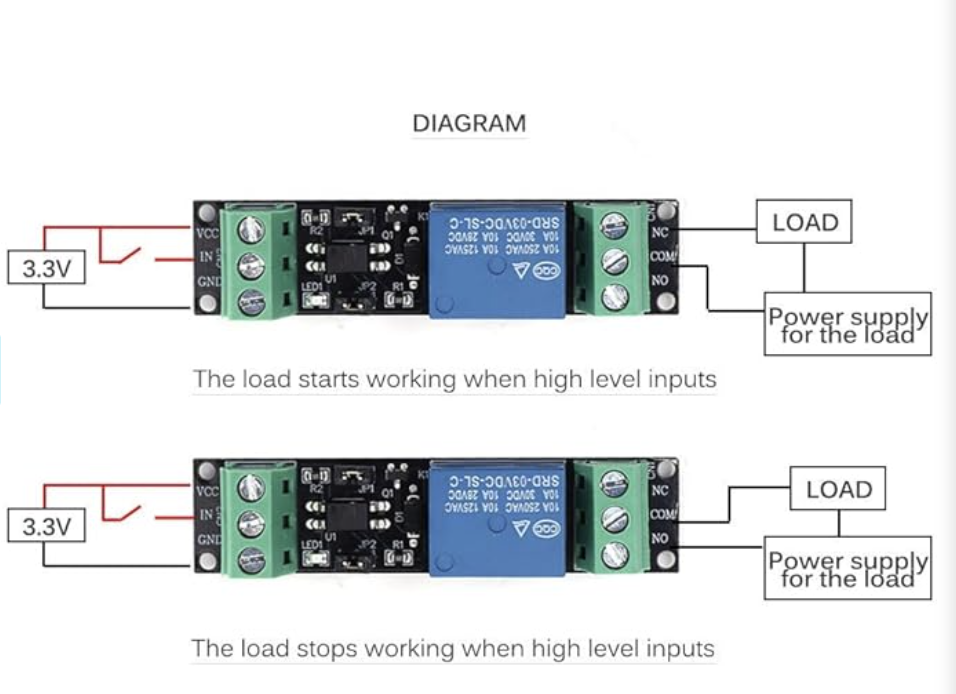

Relay Module for locks and Machines |
|
|

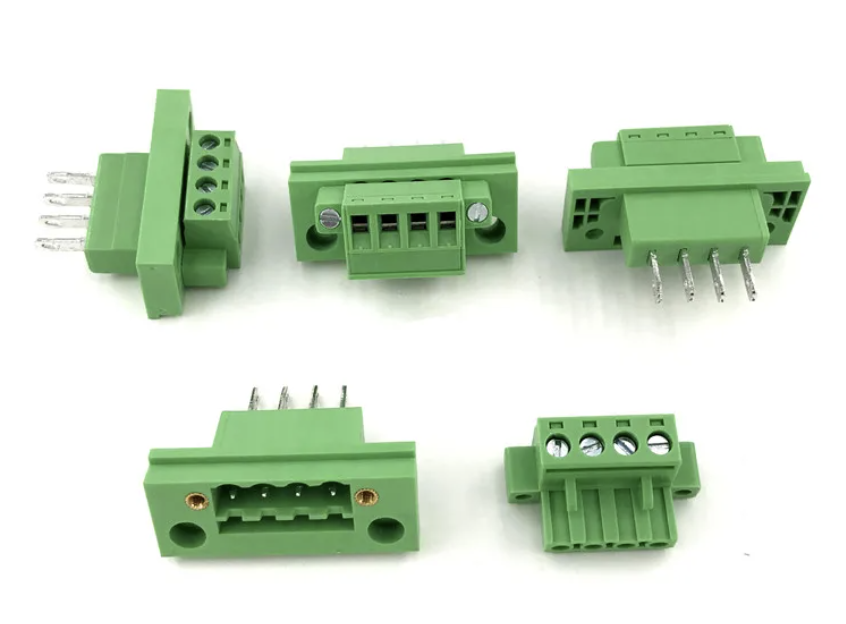

8 Pin connector for reader extension cable
|
 |

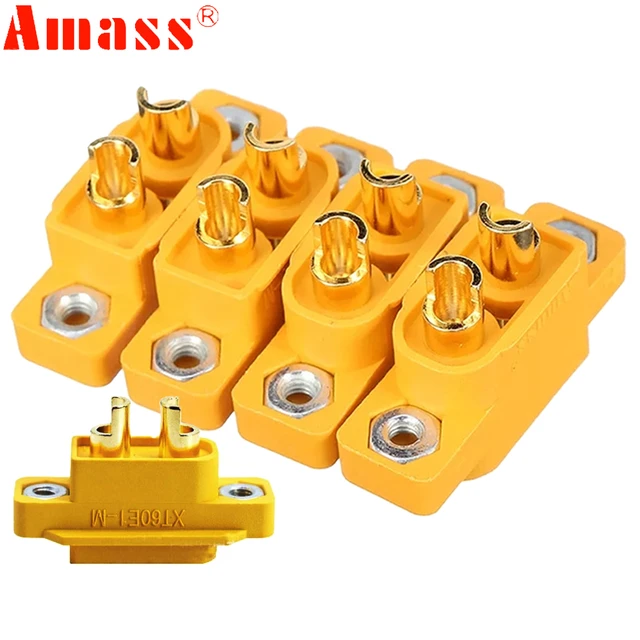

XT60 panel mount for the 12V (optional) |
|
12V power supply + 5v power supply or step down converter for 12V this is situation dependent |
Designs Shared Storage Server
Introduction
For use of the machines moving files to each machine is needed, to avoid this issue we have a shared network folder to store designs
Individual Network Share Folders can be requested by asking @anonymized
How to Access Storage
Using the SMB Protocol you can access the storage via:
Server Info
Hostname: fs.ti
Smb Path: Techinc
Full SMB URI: \\fs.ti
Mac

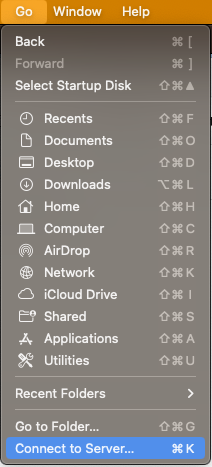

Open Finder and from the top menu choose connect to Server:

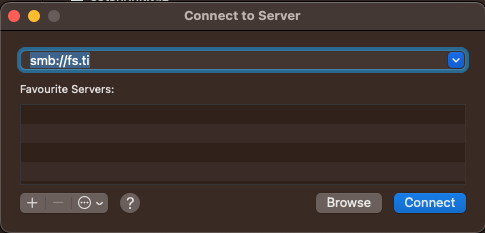

Connect to fs.ti:

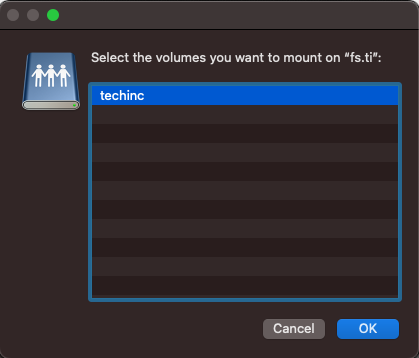

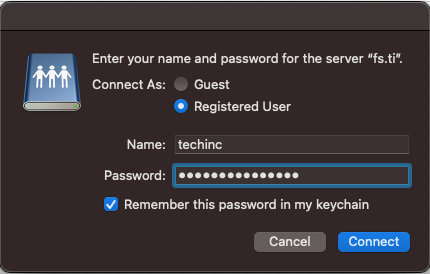

if prompted again press connect:
Your finished
Windows

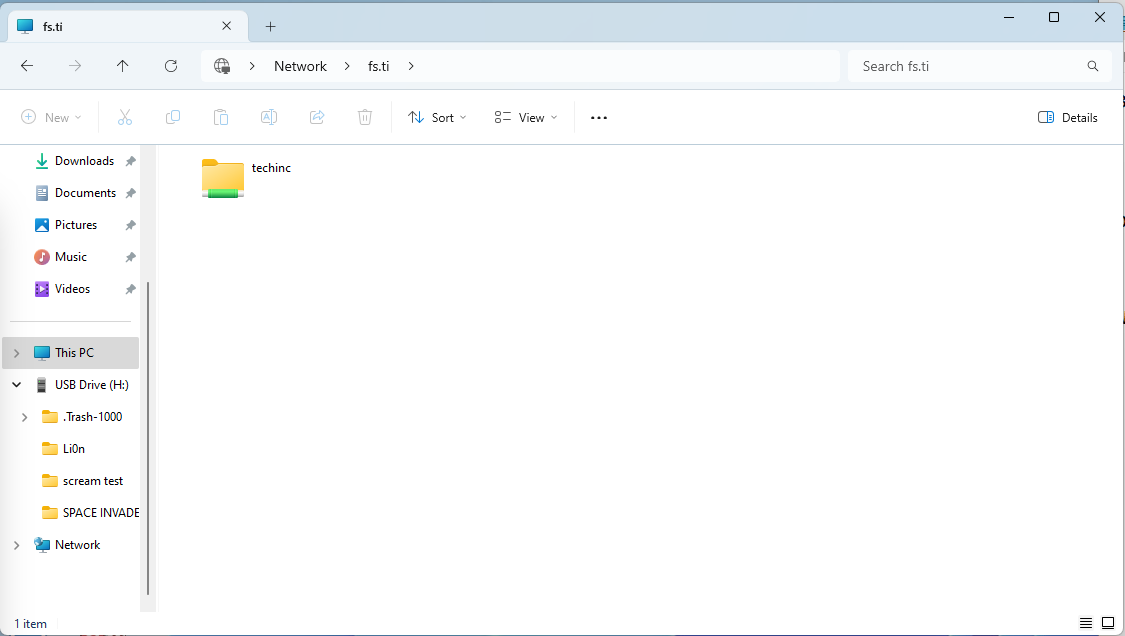

Open Explorer and in the top bar type \\fs.ti

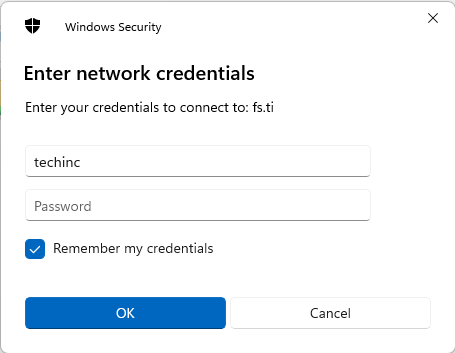

If prompted for a username and password enter techinc and the shared password

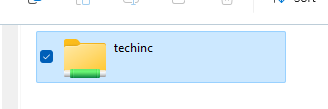

Double click and enter the techinc folder:
Your Finished
Linux
Mount an smb/cifs share or use your file browser to access a network share, due to the variance in linux distros you will need to find what works for you :)
Space Computers
Windows

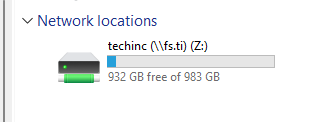

Will have a Z: Drive in my computer already attached
You may also use the map network drive option in windows to map it permanently
Linux
Will have a mount point in /mnt/techinc
Techinc DIN Rail Standards
Introduction
This page covers all info Related to Din Rail Applications inside of machines.

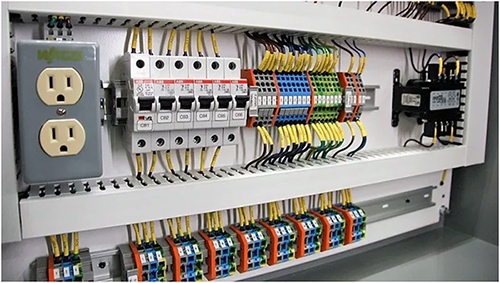

What is a DIN Rail
A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish. Although metallic, they are meant only for mechanical support and are not used as a busbar to conduct electric current, though they may provide a chassis grounding connection.
The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany, which have since been adopted as European (EN) and international (IEC) standards.[1] The original concept was developed and implemented in Germany in 1928, and was elaborated into the present standards in the 1950s.[2]
Soruce: DIN rail - Wikipedia
Rail Attachment Types
- Circuit breakers
- Terminal blocks
- Transformers
- Programmable logic controllers
- Motor controllers
- Automation controllers
- Actuators
- Power supplies
- Relays
Colour Coding
Terminal blocks
These colours must not be used for anything else besides the list below:
| Colour | Usage | Voltage |
| Green | Protective Earth | 50V-400V |

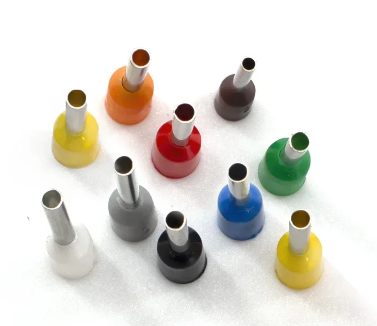

Ferrule
These colours must not be used for anything else besides the list below:
| Colour | Usage | Voltage |
| Blue | Neutral | 50V-400V |
| Brown | Live | 50V-400V |
| Green | Protective Earth | 50V-400V |
| Red | DC+/Low Voltage | 0V-49V |
| Black | DC-/Low Voltage | 0V-49V |
Technical Info
PLC's (Programmable Logic Controller)
Devices that respond to inputs and outputs, make decisions and controls machinery.
| Name | Description | |
|
|

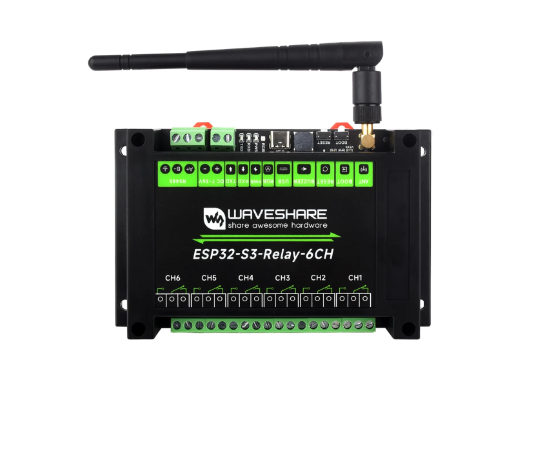

Waveshare Industriële 6-kanaals ESP32-S3 Wifi-Relaismodule, Ondersteunt Wifi/Bluetooth/Rs485-Besturing, Aan Boord Rs485/Pico-Hoed - AliExpress |
ESP32-S3 based Relay board with alot of IO Pins, External WIfi antenna and a varying 7-37V power input.
This unit is idea for controlling machines and authenticating users. |

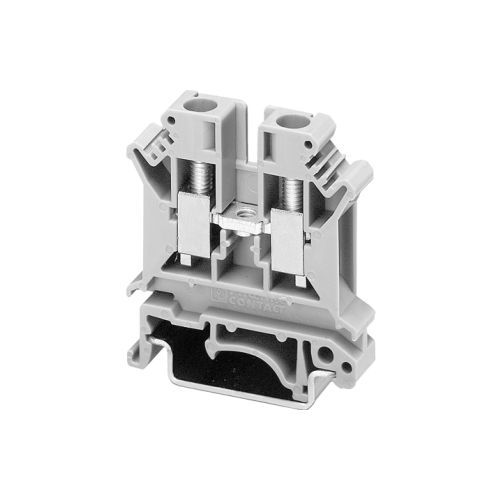

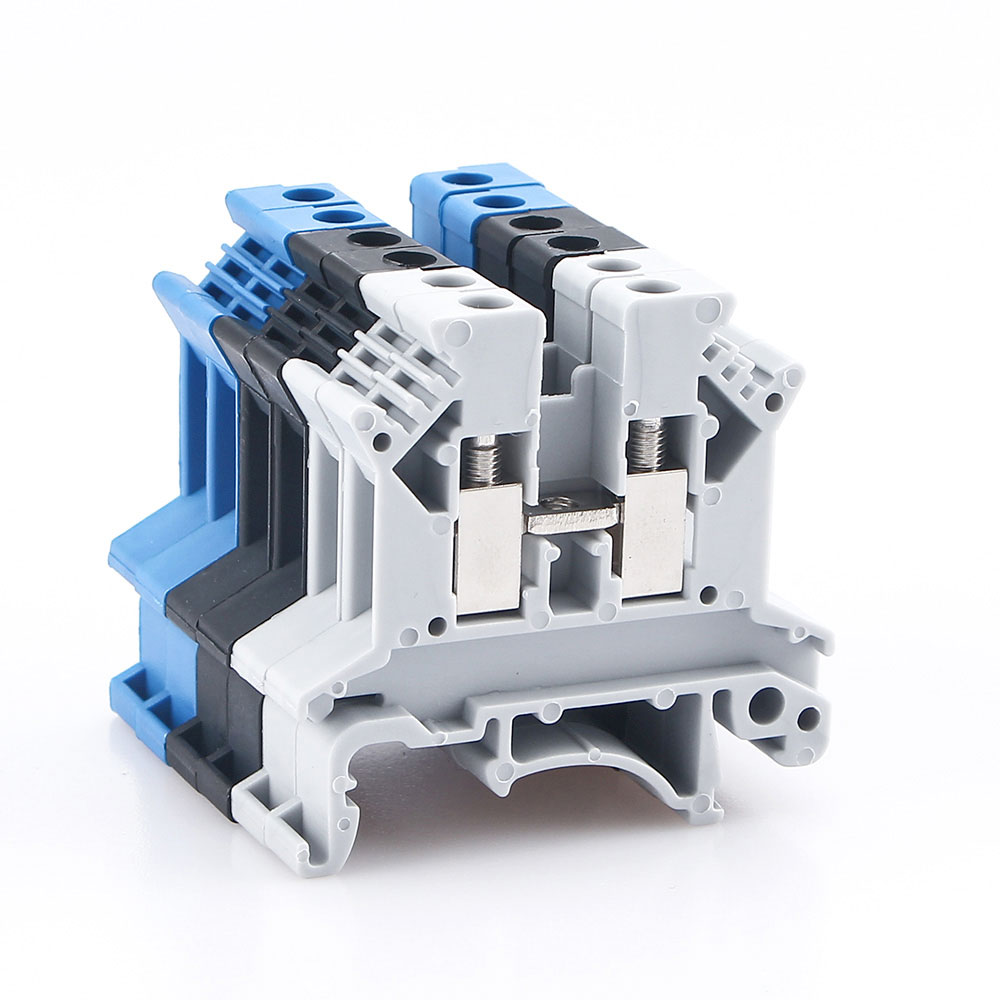

Terminal Blocks
Attaches to the DIN rail and acts lack a WAGO block.
Shopping List
Generic
| Name | Type | Description | |
|
|
1000pcs Insulated Ferrule Terminal Crimp Terminator Cord Pressed Insulated Terminal VE0508 7508 1008 1508 2508 4009 Copper (aliexpress.com) | Ferrule | Added to the end of cables that are not solid core to ensure safe connection and reliability over time. |

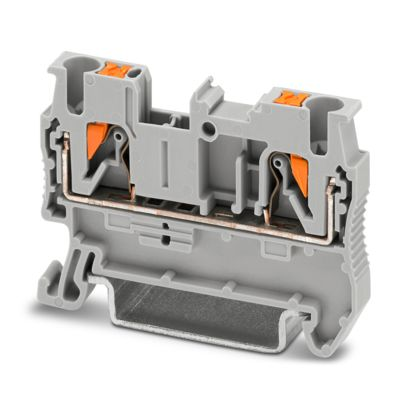

PT-2.5
| Name | Type | Description | |
|
|
10Pcs Din Rail Terminal Block PT-2.5 Push In Terminal Connector Spring Screwless Electrical Wire Conductor Terminal Block PT2.5 - AliExpress | Terminal Block | Push in Terminal Block low profile. |
|
|

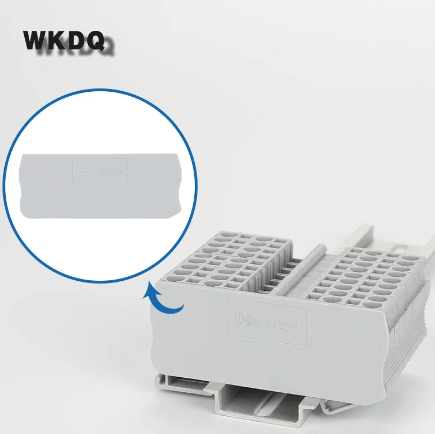

D-ST2.5-QU 10Pcs End Cover Voor ST2.5 PT2.5 Quattro Din Rail Terminal Blocks Plaat L72/H29.5/W2.2mm 4 connector D-ST 2.5-Qu Plaat (aliexpress.com) | End Cover | End cover for PT2.5. |
|
|

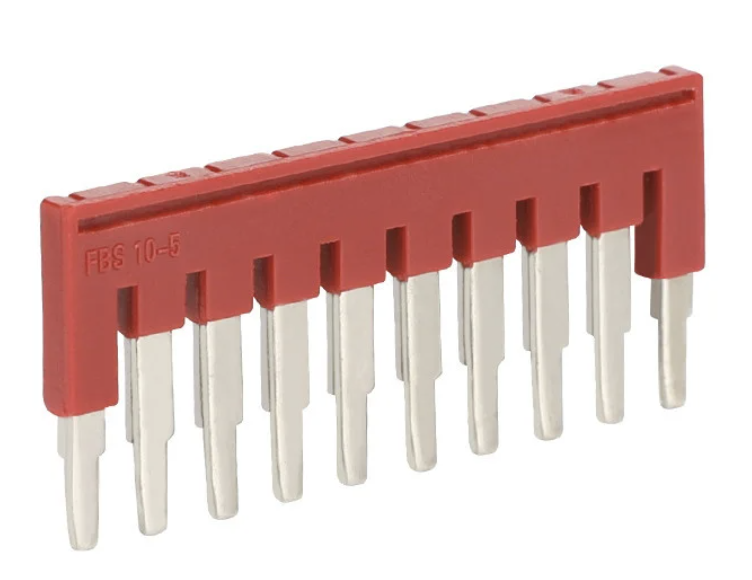

Fbs10-5 Din Rail Terminal Blocks 20pcs - Fast Contact Spring Plugs (aliexpress.us) | Insertion Bridge | Used to bridge terminal blocks together. |
|
|

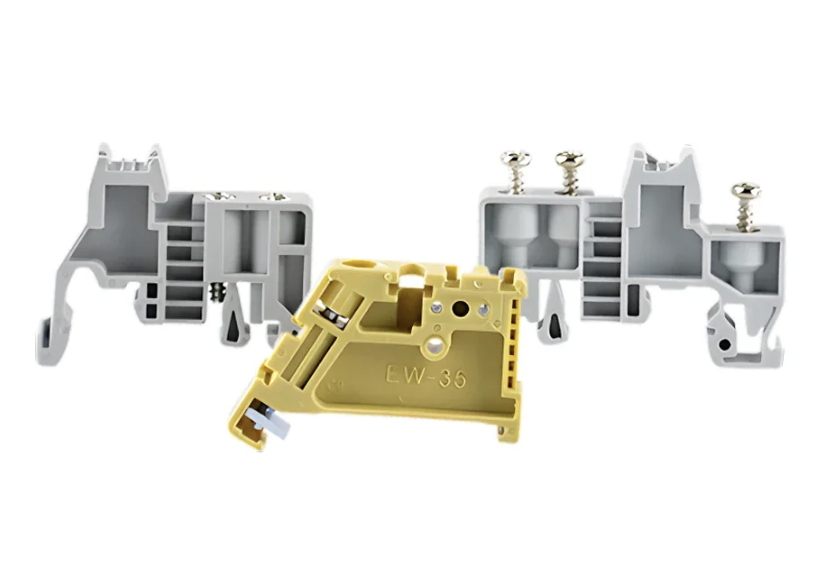

10PCS E/UK And E/UK-2 EW 35 Manufacturer End Stop For UK And SAK Terminal Blocks Din Rail End Bracket (aliexpress.com) | Terminal Block | End Cap used to terminate sections of din rail. |
|
|
St2.5 Veercontact Din Rail Terminal Block Kit Einddeksel Stop Plug-In Jumper Brug Marker Strip Assemblage Gecombineerd 12awg 1Set - AliExpress | Terminal Block Kit | Contains all of the above and a great starting point. |

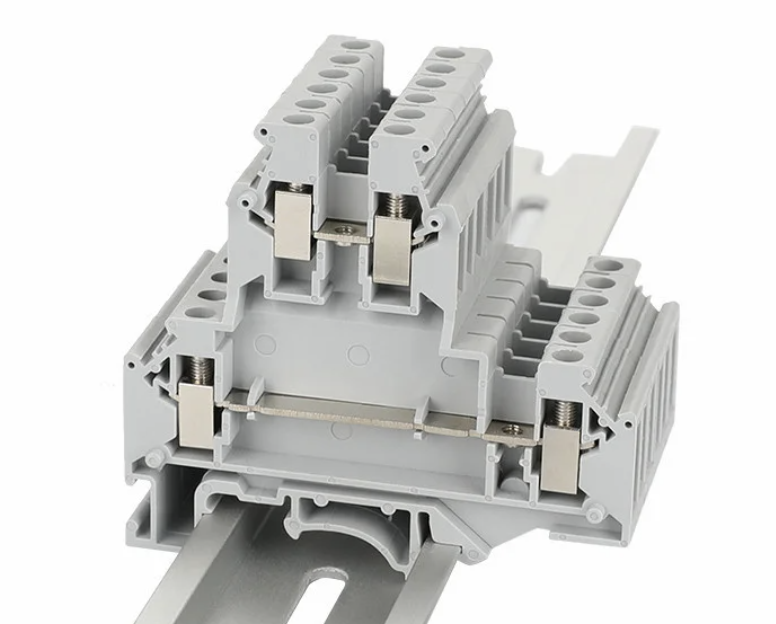

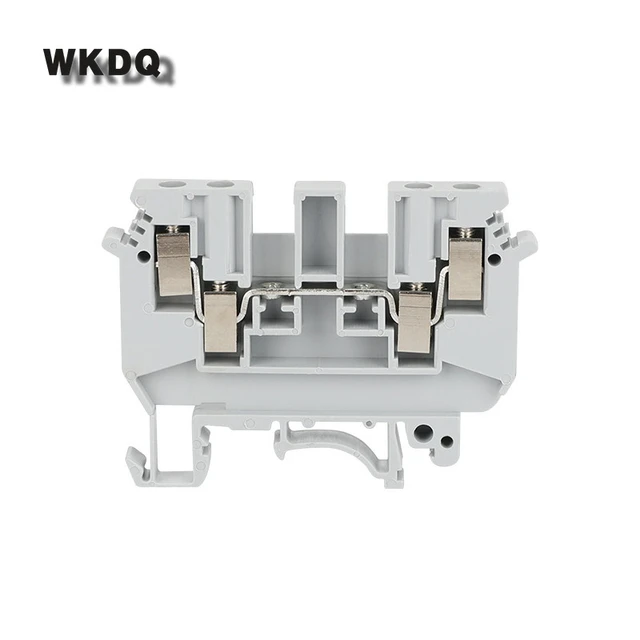

UKKB5
| Name | Type | Description | |
|
|

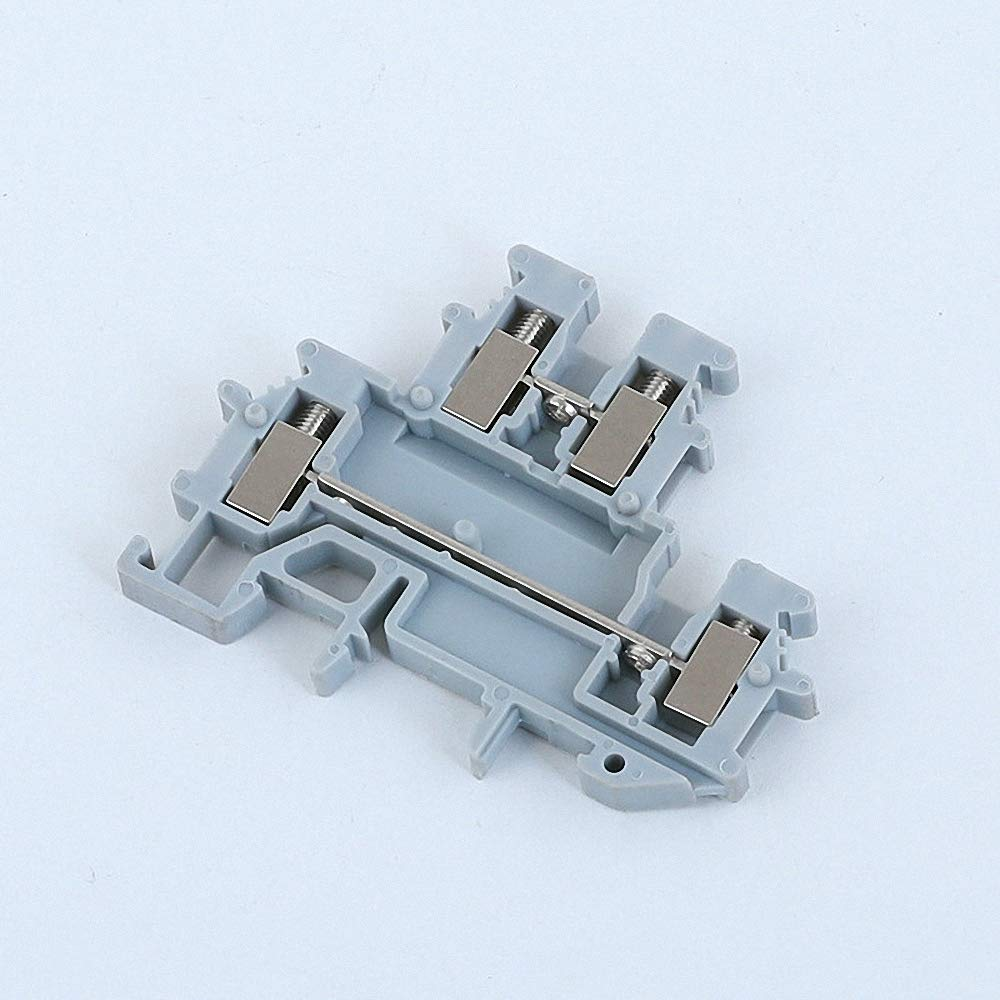

10 Stuks Ukk/Ukkb 5 Dubbelniveau Klemmenblok 2 Laag 0.2 - 4 Mm² Draad Elektrische Schroef Connector Din Rail Termin Ukk5 Ukkb5 - AliExpress | Terminal Block | Screw in Terminal Block low profile. |
|
|
|||
|
|

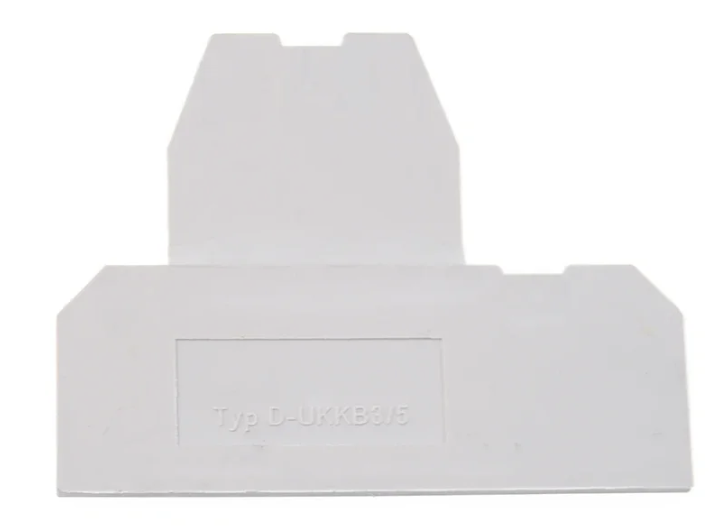

10 Stuks D-UKKB3/5 Voor UKKB-3 En UKKB-5 Terminal Block Accessoires Einde Cover Plaat Din Rail Terminal Blokken - AliExpress | End Cover | End cover for the UKKB 5 module. |
|
|
20Pcs FBI10-6 Vaste Brug 2/3/4/10 Contact Voor UK2.5B UK5N Ukk/UKKB5 Connector Fbi 10-6 Din Rail Bedradingsdeel Jumpers - AliExpress | Insertion Bridge | Used to bridge terminal blocks together. |
|
|

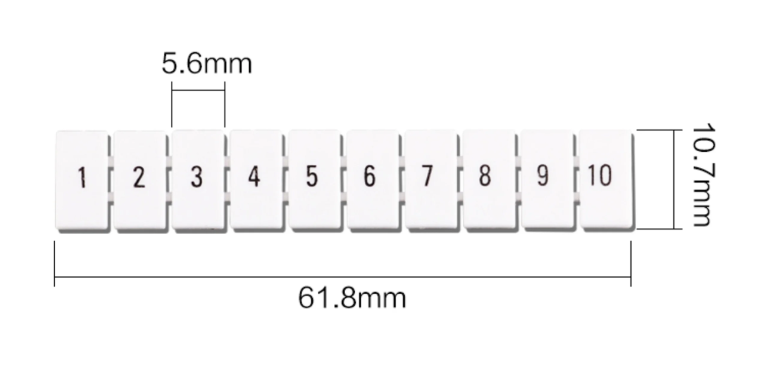

100Pcs ZB6 Voor UK2.5B UK5N PT4 ST4 Ukk/UKKB5 DIKD1.5 Nummer Blank Din Rail Terminal Blok Accessoires Uk zack Marker Strips Zb 6 - AliExpress | Label | Used to label the UKKB5 Terminal Block. |

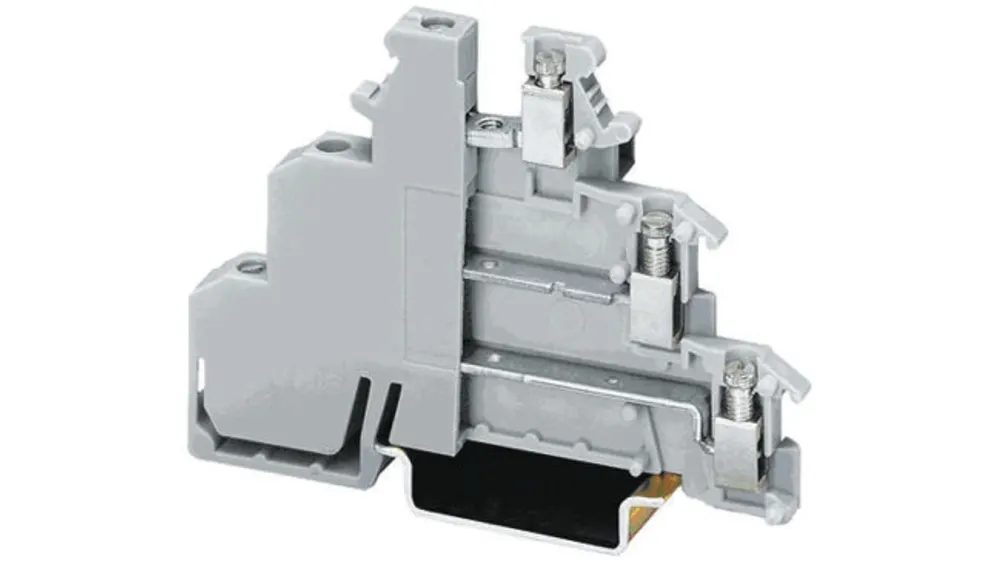

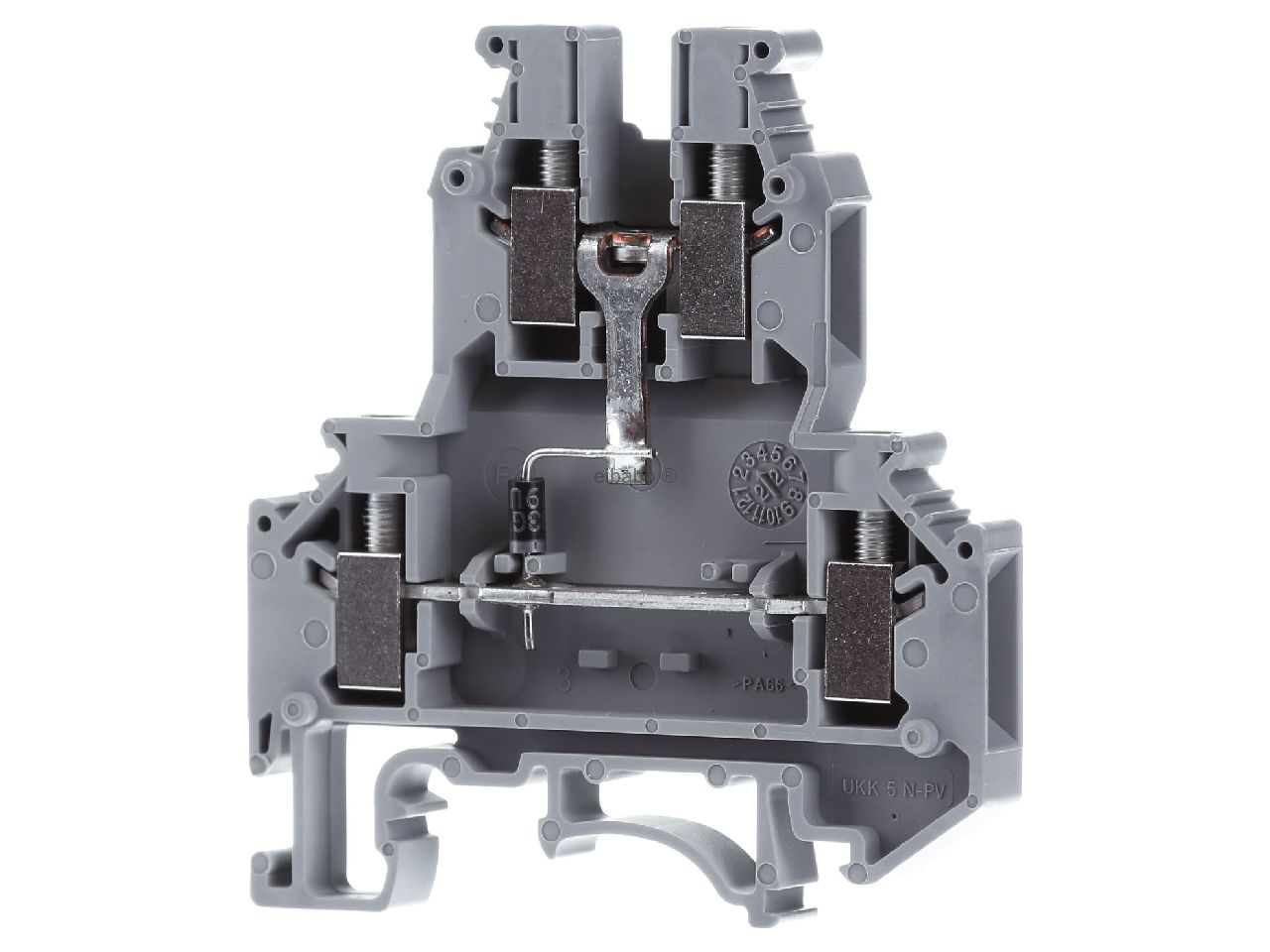

DIKD 1.5
| Name | Type | Description | |
|
|

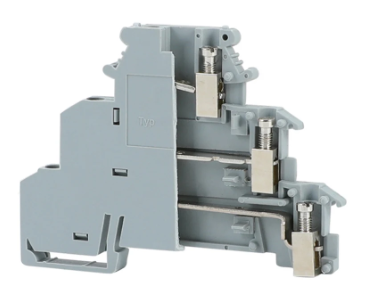

10Pcs DIKD1.5 Drie Layer Terminals Elektrische Connector Din Rail Terminal Blok 0.2-2.5 Mm ² Rail Sensor Messing Terminal blok - AliExpress | Screw in Terminal Block low profile. |
Types
|
|
|
|
|

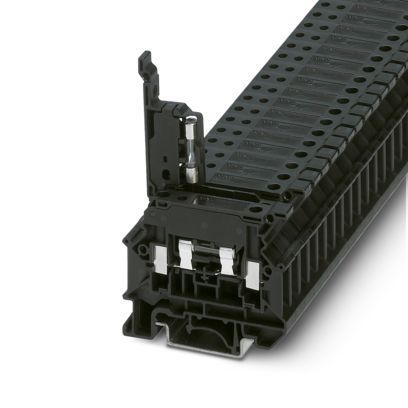

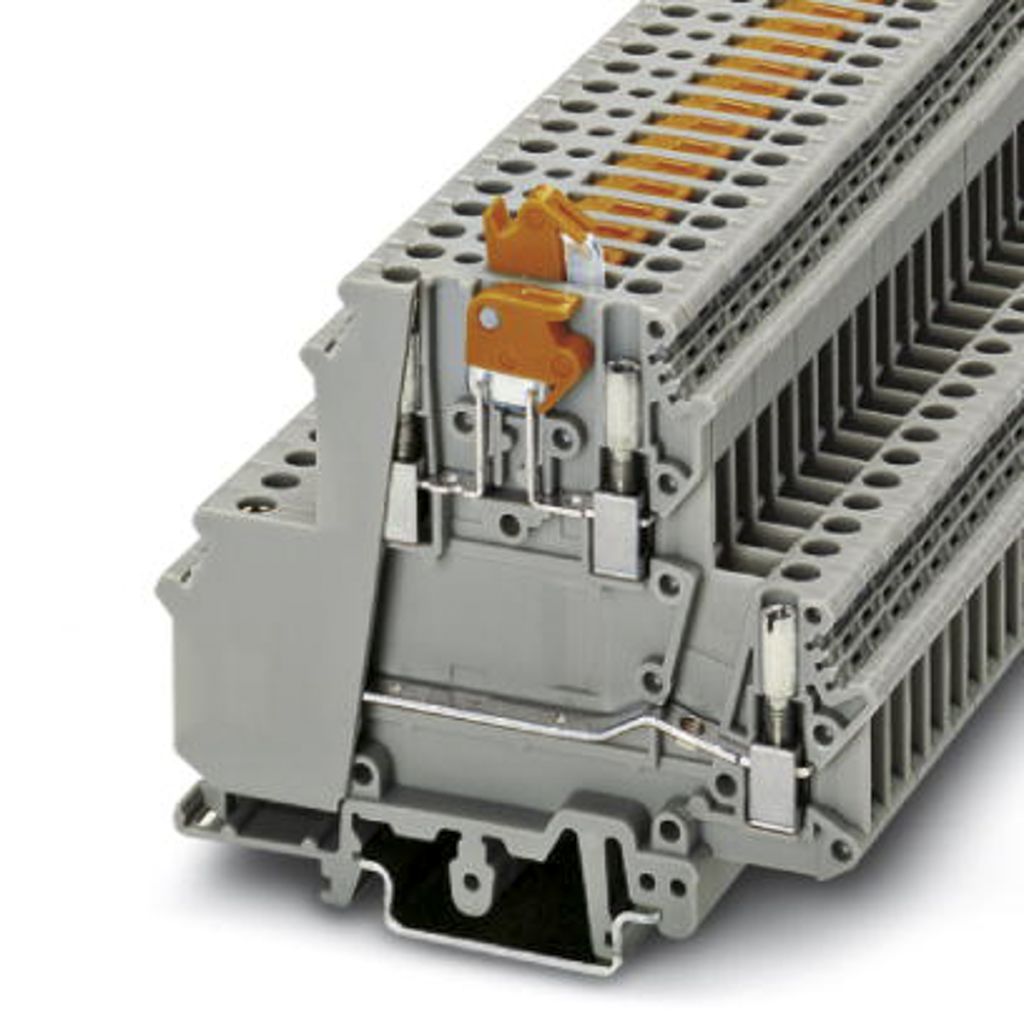

| UK 2.5B | UK 3N | UK 5N | UK 6N |
|
|
|
|
|
| UK 10N | UK-3TWIN | UK-5TWIN | UKD 4 |
|
|
|
|
|
| MBKKB 2.5 | UKKB 3 | UKKB 5 | UKK3 |
|
|
|
|
|
| UKK 5 | DIKD 1.5 | UK 5-HESI | UK 5-MTK P/P |
|
|
|||
| PT 2.5 |

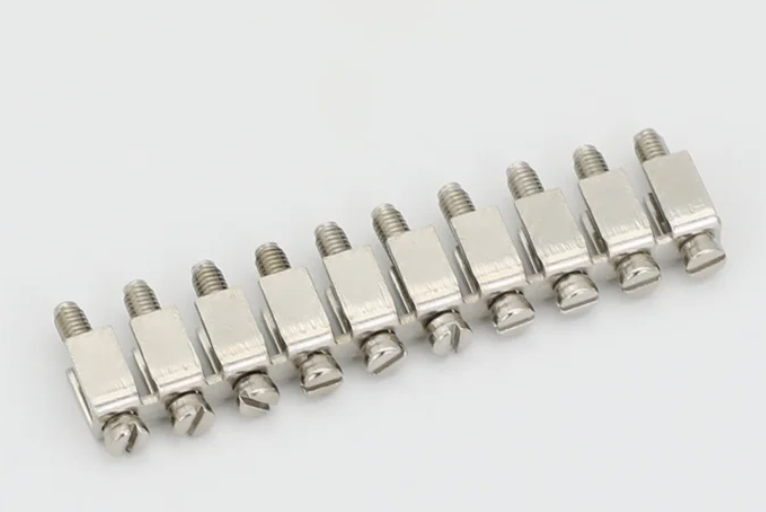

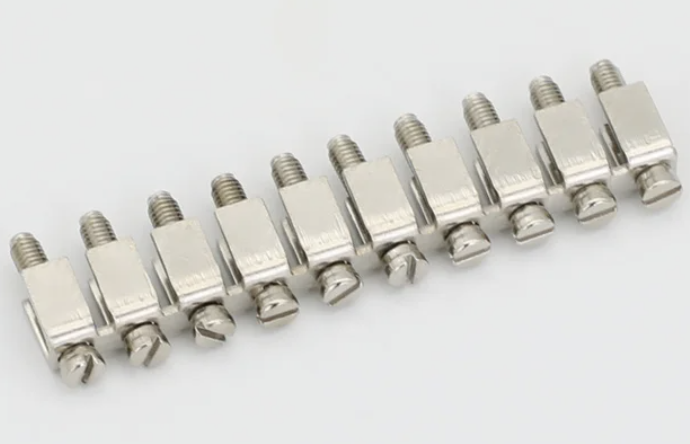

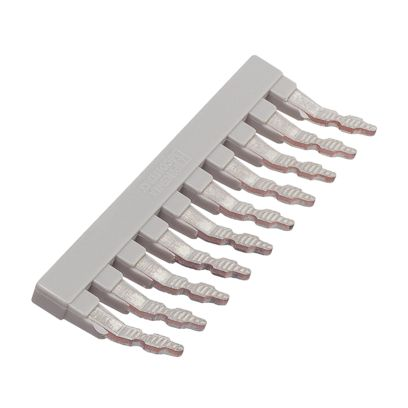

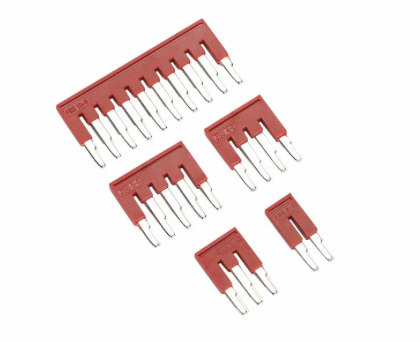

Insertion Bridges
|
|
|
|
|
| EB 10-5 | EB 10-6 | EB 10-8 | EB 10-10 |
|
|
|
||
| FBS10-5 | FBI10-6 |
Compatible Insertion Bridges
|
Terminal Model No. |
Insertion bridge Model No. |
|
UK 2.5B |
EB 10-6 |
|
UK 3N |
EB 10-5 |
|
UK 5N |
EB 10-6 |
|
UK 6N |
EB 10-8 |
|
UK 10N |
EB 10-10 |
|
UK-3TWIN |
EB 10-5 |
|
UK-5TWIN |
EB 10-6 |
|
UKD 4 |
EB 10-6 |
|
MBKKB 2.5 |
EB 10-5 |
|
UKKB 3 |
E 10-5 |
|
UKKB 5 |
EB 10-6 |
|
UKK3 |
EB 10-5 |
|
UKK 5 |
EB 10-6 |
|
DIKD 1.5 |
EB 10-6 |
|
UK 5-HESI |
EB 10-8 |
|
UK 5-MTK P/P |
EB 10-6 |
|
PT 2.5 |
FBS10-5 |
